ASTM A335 P5 Pipe

ASTM A335 P5 Pipe

We are SA 335 gr P5 seamless pipe supplier in India

ASTM A335 Gr P5 Pipe

ASTM A335 Gr P5 Pipe

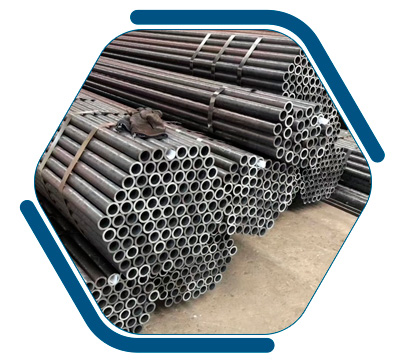

ASME SA335 P5 Pipe

ASME SA335 P5 Pipe

A335 P5 material

A335 P5 material

Specification Of ASTM A335 P5 Pipe

Sizes Standard Schedule

OD: 0.5" - 24"
WT:6mm-30mm

ASTM A335 / ASME SA335
  • SCH 5
  • SCH 10
  • SCH 20
  • SCH 40
  • SCH 80
  • SCH XS
  • SCH XXS
Ends Surface Origin
  • Beveled
  • Plain
  • Straight cut
  • Black painting
  • 3PE
  • FBE
  • PP
  • Korean
  • US
  • Ukraine
  • Japanese
  • European
  • Indian
  • Russian
International standards Testing Provided By Supplier Packaging
  • BS - UNI
  • ASTM/ASME
  • GOST
  • EN
  • DIN -NF A
  • JIS
  • ISO
  • GB 5310
  • NACE TM0177
  • H2 SERVICE
  • NACE TM0284
  • IBR
  • NACE MR0175
  • SSC TEST
  • HIC TEST
  • Loose
  • Wooden Pallet
  • Bundle
  • Plastic Cloth Wraps
  • Wooden box-a
Payment terms Length Type
  • L/C
  • T/T
  • Single Random
  • Double Random
  • Cut length
  • Seamless
  • Welded
  • ERW
Value Added Services Delivery Conditions Coating
  • Draw
  • Machining
  • Galavanizing
  • Expansion
  • Shot Blasting
  • Heat Treatment
  • Sand Blasting
  • Cold Drawn
  • Hot Rolled
  • Normalized and Tempered
  • Normalizing Rolled
  • Quenched and Tempered
  • Normalizing Formed
  • 3LPE
  • FBE
  • Galvanized
  • CRA
  • Varnished
Cutting techniques Marking on A335 P5 pipe Form
  • Burrless Cuts
  • Tapping
  • Sawing
  • Water-Jet
  • Length
  • OD name
  • Grade
  • Thickness
  • Heat No.
  • Standard
  • Manufacturer/Supplier
  • Round
  • Rectangular
  • Square

Leading stockist of UNS K41245 welded pipe, Refer weight chart of ASTM A335 Gr P5 ERW pipe

A335 gr p5 Chrome Pipe weight chart

Size Nomial Pipe Size I.D. Outside Diameter Gallon Capacity Per Linear Foot Standard to XXHY Weight per Foot Schedule
#
Wall Thickness (WT) Section Modulus
1/2 0.622 0.84 .0158 STD 0.85 40 0.109 .0407
0.546 .0122 XHY 1.09 80 0.147 .0478
0.252 .0026 XXHY 1.72 0.294 .0577
0.464 .0088 1.31 160 0.188 .0528
1 1.049 1.315 .0449 STD 1.68 40 0.133 .1328
0.815 .0271 2.85 160 0.250 .1904
0.957 .0374 XHY 2.17 80 0.179 .1606
0.599 .0146 XXHY 3.66 0.358 .2136
3/4 0.824 1.05 .0277 STD 1.13 40 0.113 .0705
0.742 .0225 XHY 1.48 80 0.154 .0853
0.612 .0153 1.95 160 0.219 .1006
0.434 .0077 XXHY 2.44 0.308 .1103
1 1/4 1.380 1.66 .0777 STD 2.27 40 0.140 .2346
1.160 .0549 3.77 160 0.250 .3421
1.278 .0666 XHY 3.00 80 0.191 .2913
0.896 .0328 5.22 0.382 .4110
1 1/2 1.610 1.90 .1058 STD 2.72 40 0.145 .3262
1.500 .0918 XHY 3.63 80 0.200 .4118
1.338 .0730 4.86 160 0.281 .5079
1.100 .0494 6.41 0.400 .5977
2 2.157 2.375 .1898 2.64 10 0.109 .4205
1.939 .1534 XHY 5.03 80 0.218 .7309
2.067 .1743 STD 3.66 40 0.154 .5606
1.875 .1434 5.68 0.250 .8045
1.687 .1161 7.47 160 0.344 .9806
1.813 .1344 6.29 0.281 .8666
1.503 .0922 XXHY 9.04 0.436 1.1043
2 1/2 2.635 2.875 .2833 3.53 10 0.120 .6870
2.443 .2435 6.14 0.216 1.1169
2.469 .2487 STD. 5.80 40 0.203 1.0640
2.375 .2301 7.02 0.250 1.2468
2.125 .1842 10.02 160 0.375 1.6371
2.323 .2202 XHY 7.67 80 0.276 1.3386
1.771 .1280 XXXHY 13.71 0.552 1.9971
3 3.260 3.50 .4336 4.34 0.120 1.0411
3.188 .4147 5.58 0.156 1.3122
3.124 .3984 6.66 0.188 1.5342
3.156 .4064 6.12 0.172 1.4265
3.068 .3840 STD. 7.58 40 0.216 1.7241
2.938 .3521 9.67 0.281 2.1207
3.000 .3672 8.69 0.250 1.9372
2.900 .3431 XHY 10.26 80 0.300 2.2253
2.624 .2811 14.34 160 0.438 2.8774
3 1/2 3.760 4.0 .5768 4.98 10 0.120 1.3776
2.300 .2158 XXHY 18.6 0.600 3.4243
3.548 .5136 STD. 9.12 140 0.226 2.3939
3.438 .4821 11.17 0.281 2.8562
3.500 .4998 10.02 0.250 2.6001
2..728 .3085 XXHY 22.87 0.636 4.8795
3.364 .4617 XHY 12.52 80 0.318 3.1400
4 4.260 4.5 .7404 5.62 10 0.120 1.7612
4.124 .6942 8.67 0.188 2.6296
4.188 .7156 7.24 0.156 2.2354
4.094 .6838 9.32 0.203 2.8173
4.026 .6613 STD. 10.80 40 0.237 3.2145
4.062 .6725 10.02 0.219 3.0184
4.000 .6528 11.36 0.250 3.3611
3.876 .6126 13.97 0.312 4.0273
3.938 .6326 12.67 60 0.281 3.7021
3.826 .5972 XHY 15.00 80 0.337 4.2713
3.438 .4822 22.53 160 0.531 5.8997
3.624 .5361 19.02 120 0.438 5.1790
3.152 .4054 XXHY 27.57 0.674 6.7927
5 5.187 5.563 1.0979 10.80 0.188 4.1161
5.047 1.0391 STD. 14.63 40 0.258 5.4500
5.125 1.0716 12.51 0.219 4.7279
5.001 1.0204 15.87 0.281 5.8644
4.875 .9696 19.19 0.344 6.9358
4.939 .99647 17.51 0.312 6.4074
4.813 .9449 XHY 20.80 80 0.375 7.4300
4.313 .7590 32.99 160 0.625 10.7976
4.563 .8495 27.06 120 0.500 9.2534
4.063 .6734 XXHY 38.59 0.750 12.0954
6 6.407 6.625 1.6748 7.59 5 0.109 3.5769
6.313 1.6260 10.79 0.156 5.0107
6.357 1.6488 9.30 10 0.134 4.3475
6.249 1.5937 12.94 0.188 5.9351
6.187 1.5620 15.00 0.219 6.8261
6.219 1.5780 13.94 0.203 6.3804
6.125 1.5306 17.04 0.250 7.6905
6.001 1.4688 21.06 0.312 9.3416
6.065 1.5008 STD. 18.99 40 0.280 8.4958
5.937 1.4391 23.10 0.344 10.111
5.761 1.3541 XHY 28.60 80 0.432 12.224
5.875 1.4082 25.05 0.375 10.893
5.625 1.2909 32.74 0.500 13.711
5.375 1.1787 40.09 0.625 16.1821
5.501 1.2346 36.43 120 0.562 14.9806
5.187 1.0977 45.39 160 0.719 17.8243
4.625 .8727 60.13 1.000 21.7719
4.897 .9784 XXHY 53.21 0.864 20.025
4.375 .7809 66.14 1.125 23.1237

We export A335 gr p5 Chrome Pipe in size range of 1/2" to 48", Check latest price list of A335 Grade P5 cold rolled pipe

SA 335 gr P5 pipe Price list

Price list of A335 gr P5 pipe SA335 P5 Pipe Price in India (INR) ASTM A335 P5 Pipe Price in USD SA335 grade P5 Pipes Price in UAE Dirham
ASME SA335 GR.P5 OD323.9MMX12.7MM INR 133 per kg US $1.60 per kg 5.87 UAE Dirham per kg
ASTM A335 GR.P5 OD168.3MM XWT SCH40 INR 94 per kg US $1.13 per kg 4.15 UAE Dirham per kg

Types Of ASME SA335 P5 Pipe

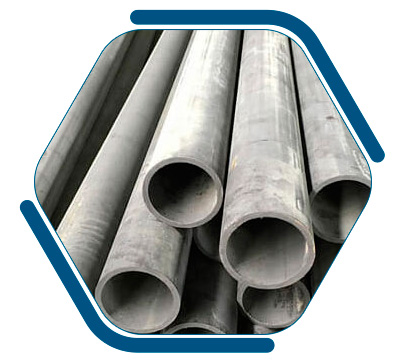

UNS K41245 welded pipe

UNS K41245 welded pipe

SA 335 gr P5 seamless pipe

SA 335 gr P5 seamless pipe

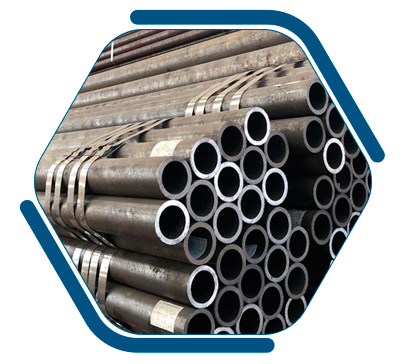

ASTM A335 Gr P5 ERW pipe

ASTM A335 Gr P5 ERW pipe

Chrome Moly P5 EFW pipe

Chrome Moly P5 EFW pipe

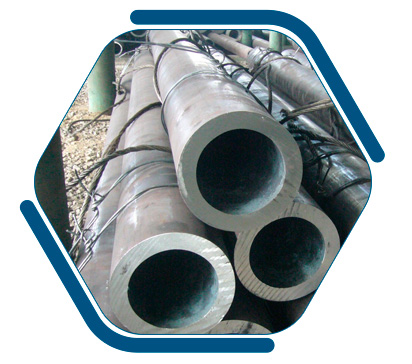

SA335 P5 round pipe

SA335 P5 round pipe

A335 Grade P5 cold rolled pipe

A335 Grade P5 cold rolled pipe

Alloy Steel P5 hot rolled pipe

Alloy Steel P5 hot rolled pipe

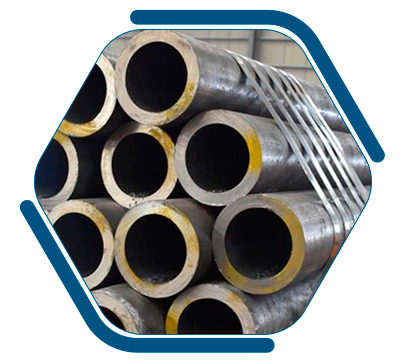

A335 gr P5 Chrome Pipe

A335 gr P5 Chrome Pipe

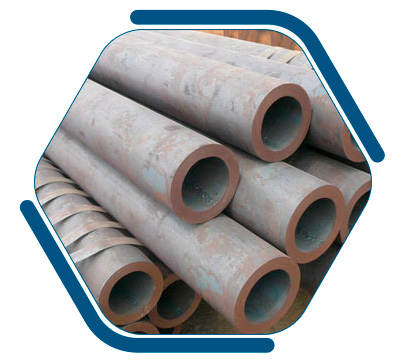

ASME SA335 P5 cold finished pipe

ASME SA335 P5 cold finished pipe

Chrome Moly P5 EFW pipe are available in plain, threaded or beveled end, We are stockist and distributor of Alloy Steel P5 hot rolled pipe

Surface Finish and Ends of A335 Grade P5 cold rolled pipe

  • Surface Finishes: Mill Varnish / 3LPE / FBE / Bare / Galv / 3LPP / FBE Dual / Coal Tar / Oiled / Concrete Coating
  • End Finishes: Beveled / Square Cut / Threaded & Coupled.

A335 P5 chemical composition

Grade Si Mo C S Mn P Cr
A335 P5 0.50 0.45-0.65 0.050-0.15 ≤0.025 0.30-0.60 ≤0.025 4.00-6.00

A335 Grade P5 cold rolled pipe mechanical properties

Grade Tensile Strength(MPa) Yield Strength(MPa) Elongation(%)
A335 P5 ≥415 ≥205 ≥30

ASTM A335 gr P5 equivalent

ASTM JIS G 3458 ISO UNS BS ASME ABS
A335 P5 STPA 25 2604 III TS37 K41245 3604 P1 625 SA335 P5 ABS 14

Sizes of Alloy Steel P5 hot rolled pipe

Nominal O.D. Inches 10 40 80 160
1/8" .405 .049 .068 .095
1/4" .540 .065 .088 .119
3/8" .675 .065 .091 .126
1/2" .840 .083 .109 .147 .187
3/4" 1.050 .083 .113 .154 .218
1" 1.315 .109 .133 .179 .250
1 1/4" 1.660 .109 .140 .191 .250
1 1/2" 1.900 .109 .145 .200 .281
2" 2.375 .109 .154 .218 .343
2 1/2" 2.875 .120 .203 .276 .375
3" 3.500 .120 .216 .300 .437
3 1/2" 4.000 .120 .226 .318
4" 4.500 .120 .237 .337 .531
4 1/2" 5.000
5" 5.563 .134 .258 .375 .625
6" 6.625 .134 .280 .432 .718
7" 7.625
8" 8.625 .148 .322 .500 .906
9" 9.625
10" 10.750 .165 .365 .593 1.125
11" 11.750
12" 12.750 .180 .406 .687 1.312
14" 14.000 .250 .437 .750 1.406
16" 16.000 .250 .500 .843 1.593
18" 18.000 .250 .562 .937 1.781
View dimensions of Alloy Steel P5 hot rolled pipe online, Buy SA335 P5 round pipe at factory price in Mumbai

Dimension of ASTM A335 Gr P5 Pipe

NPS OD (IN) ID (IN) WT (IN) WEIGHT (LB/FT)
1/8 0.405" 0.269" 0.068" 0.24
1/4 0.540" 0.364" 0.088" 0.42
3/8 0.675" 0.493" 0.091" 0.57
1/2 0.840" 0.622" 0.109" 0.85
3/4 1.050" 0.824" 0.113" 1.13
1 1.315" 1.049" 0.133" 1.68
1-1/4 1.660" 1.380" 0.140" 2.27
1-1/2 1.900" 1.610" 0.145" 2.72
2 2.375" 2.067" 0.154" 3.65
2-1/2 2.875" 2.469" 0.203" 5.79
3 3.500" 3.068" 0.216" 7.58
3-1/2 4.000" 3.548" 0.226" 9.11
4 4.500" 4.026" 0.237" 10.79
5 5.563" 5.047" 0.258" 14.62
6 6.625" 6.065" 0.280" 18.97
8 8.625" 7.981" 0.322" 28.55
10 10.750" 10.020" 0.365" 40.48
12 12.75" 11.938" 0.406" 53.52
14 14.000" 13.124" 0.438" 63.50
16 16.000" 15.000" 0.500" 82.77
18 18.000" 16.876" 0.562" 104.70
20 20.000" 18.812" 0.594" 123.10
24 24.000" 22.624" 0.688" 171.30

ASTM A335 P5 hardness

Hardness ≤ 163HB

Inspection and testing of SA335 P5 round pipe

  • Longitudinal Tension Test
  • Surface and dimension test
  • Flattening test
  • Bend Test
  • Flaring test
  • Hardness Test
  • Hydrostatic test as per ASTM A530
  • Non destructive test

Dimensional tolerance of Alloy steel P5 pipe

NPC [DN] Designator Over Under
in. mm in. mm
1/2 to 1 1/2 [6 to 40],incl. 1/64 (0.015) 0.40 1/64 (0.015) 0.40
Over 4 to 8 [100 to 200],incl. 1/16 (0.031) 0.79 1/16 (0.031) 0.79
Over 1/2 to 4 [40 to 100],incl. 1/32 (0.031) 0.79 1/32 (0.031) 0.79
Over 8 to 12 [200 to 300],incl. 3/32 (0.031) 0.79 1/32 (0.031) 0.79
Over 12 [300] ± 1% of specified outside diameter

How to order UNS K41245 welded pipe

  • Quantity
  • Name of material
  • Grade
  • Manufacturing process (hot-finished or cold-drawn)
  • Size
  • Length
  • End finish as per A999/A999M)

Packing of ASTM A335 Gr P5 Pipe

  • Bare packing
  • Bundle packing
  • Crate packing
  • Wooden protection
