Stainless Steel 304L Welded Tube

View SA269 TP304 Tubes Thickness

Nitron Alloys Overseas is one of the most popular industries that are globally dealing as a manufacturer, supplier, and exporter of ASTM A269 Grade. TP 304 Tube. Our fabricated these Tubes are having very good features to offer due to which it is widely appreciated among the numbers of clients and is highly demanded. Our product is manufactured and offered to the buyers at various specifications like in standards, sizes, classes, types, etc. To all the buyers, we are delivering the product at custom made specifications according to the needs they are having.


We, Nitron Alloys Overseas, are manufacturing ASTM A269 Grade. TP 304L Tube that has low carbon content, which eliminates carbon precipitation in the welding process. These Tubes can be used in severe corrosion environments. It also has the improved anti-corrosion scope due to added molybdenum in these pipes, weld annealing only required in high stress applications. ASTM Tubes are having chemical compositions of carbon, manganese, silicon, phosphorus, sulfur, chromium, and nickel that offer exceptional chemical and mechanical properties. Our offered ASTM A269 Grade. TP 316 Tube has superior finish, robust structure, higher durability, and longer working life.


At our highly operational manufacturing unit, the development of ASTM A269 Grade. TP 316L Tube is done with lots of care and perfections. It is done by using the premium quality of alloy that is collected from reliable market mills only and is well tested and certified for use in Tube’s development. The use of the latest technology and modern tools have helped our industry develop the superior quality of the product that assures it to be used in any critical applications. The development of ASTM A269 Grade. TP 304 Tube is done according to set manufacturing norms and raw material quality standards. The availability of both professional expert team and the quality controller has proved to be a lot advantageous in the development of high quality of these Tubes. Our packaging team carries out the appropriate packaging of these Tubes to protect from damage and rust during the transit. Then we offer safe and secure shipment using convenient transportation within the period.



Schedule 10 304 SS Tube Price per KG in India

Specification of Stainless Steel TP304, 304L, 316, 316L Tubes


Tube Sizes

Stainless Steel 304 Tube Sizes

OD: 0.5" - 24"

WT:6mm-30mm


Dimensional Standard

304 Stainless Steel Round Tube Dimensional Standard

ASME B36.19
ASME B36.10


Surface

SS 304 Square Tube Surface

400G 500G 800G Mirror finish
180G 320G 400G Satin
Annealed & Pickled finish

Schedule

AISI 304 Heater Tube Schedule

SCH 5
SCH 10
SCH 20
SCH 40
SCH 80
SCH 120
SCH XXS

Packaging

SUS 304 High Pressure Tube Packaging

Wooden Pallet
Plastic Cloth Wraps
Bundle
Wooden box-a
Loose

Length

INOX 304 Tube Length

Cut Length
Single Random
Double Random




Delivery Conditions

UNS S30400 Cold Drawn Tube Delivery Conditions

Quenched and Tempered
Hot Rolled
Normalizing Rolled
Normalizing Formed
Cold Drawn
Normalized and Tempered

testing Provided By Supplier

DIN 1.4301 Hot Finished Tube Supplier

NACE MR0175
HIC TEST
SSC TEST
NACE TM0284
NACE TM0177
H2 SERVICE

 Value Added Services

SUS304 Seamless Tube Value Added Services

Sand Blasting
Shot Blasting
Galavanizing
Machining
Heat Treatment
Draw

Cutting Techniques

INOX AISI 304 Heat Exchanger Tube Cutting Techniques

Tapping
Water-Jet
Burrless Cuts

Form

1.4301 Tube Form

Round
Square
Rectangular


Ends

UNS S30400 Hot Formed Tubes Ends

Plain
Treaded
Beveled


Cutting Techniques

304 SS Tube Manufacturing Type

Welded

Form

ASTM A269 TP304 Welded Tube Standards

ASME SA312
ASTM A312

Density

SA 269 TP 304 Seam Welded Tube Density

Density : 8.0 g/cm3


Types of Stainless Steel TP 304, 304L, 316, 316L Tubes

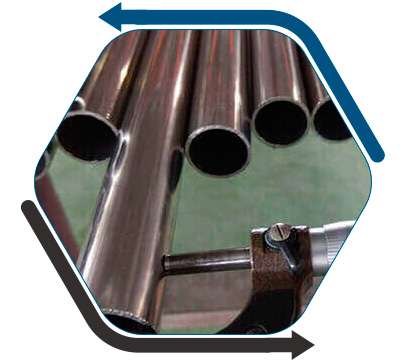

Stainless Steel 304L  Welded Tubes

Stainless Steel 304L Welded Tubes

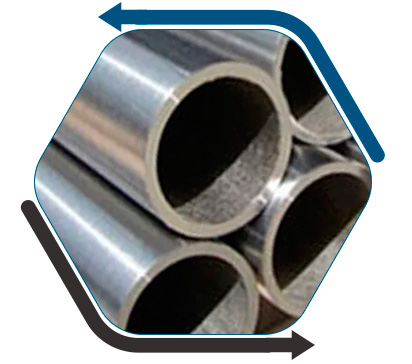

ASME SA269 SS 316L  ERW Tubes

ASME SA269 SS 316L ERW Tubes





 Stainless Steel TP316    ERW Welded Tubes

Stainless Steel TP316 ERW Welded Tubes

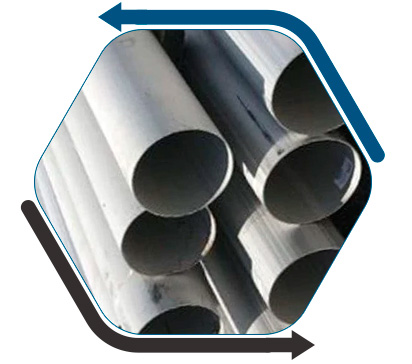

  SS 304L   Electric Fusion Welded Tubes

SS 304L Electric Fusion Welded Tubes


      SUS 304    Bright Annealed Tube

SUS 304 Bright Annealed Tube


  Austenitic Stainless Steel 304   Condenser Tube

Austenitic Stainless Steel 304 Condenser Tube


    TP316 Stainless Steel    Heat Exchanger Tube

TP316 Stainless Steel Heat Exchanger Tube





 High Quality SS TP304  High Pressure Tube

High Quality SS TP304 High Pressure Tube

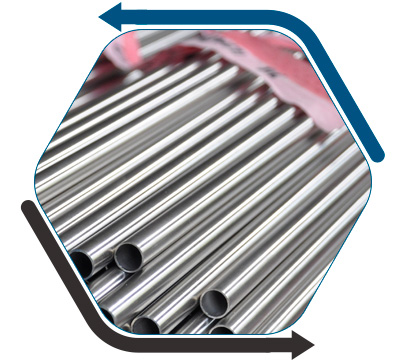

    SA 269 grade 316  Polish Tube

SA 269 grade 316 Polish Tube

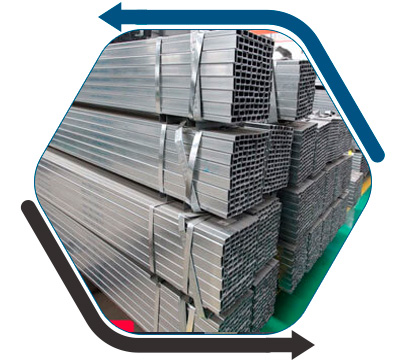

  SS S30403     Rectangular Tube

SS S30403 Rectangular Tube


  1.4306  SS   Round Tube

1.4306 SS Round Tube

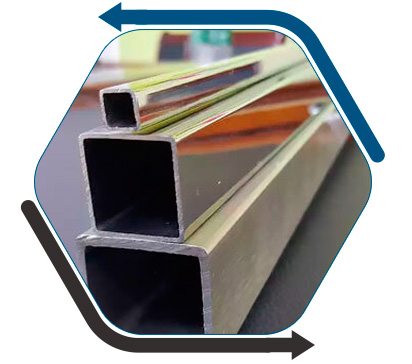

 ASTM A269 SS TP304  Square Tube

ASTM A269 SS TP304 Square Tube



Check Tolerance of ASME SA269 SS 316L Bright Annealed Tube


Tolerance +/-10%

Refer Weight Chart of UNS S30400 High Pressure Tube
OD inches Ave. Wall inches Tube Cross Sectional Area (in2) D/t Ratio ID inches Internal Area (in2)
2.000 0.035 0.2161 57.14 1.930 2.9255
2.000 0.049 0.3003 40.82 1.902 2.8413
2.000 0.065 0.3951 30.77 1.870 2.7465
2.000 0.083 0.4999 24.10 1.834 2.6417
2.000 0.095 0.5685 21.05 1.810 2.5730
2.000 0.109 0.6475 18.35 1.782 2.4941
2.000 0.120 0.7087 16.67 1.760 2.4328
2.000 0.134 0.7855 14.93 1.732 2.3561
2.000 0.148 0.8611 13.51 1.704 2.2805
2.000 0.165 0.9512 12.12 1.670 2.1904
1.750 0.035 0.1886 50.00 1.680 2.2167
1.750 0.049 0.3003 40.82 1.902 2.8413
1.750 0.065 0.3441 26.92 1.620 2.0612
1.750 0.083 0.4347 21.08 1.584 1.9706
1.750 0.095 0.4939 18.42 1.560 1.9113
1.750 0.109 0.5619 16.06 1.532 1.8433
1.750 0.120 0.6145 14.58 1.510 1.7908
1.750 0.134 0.6803 13.06 1.482 1.7250
1.750 0.148 0.7449 11.82 1.454 1.6604
1.750 0.165 0.8216 10.61 1.420 1.5837
1.500 0.035 0.1611 42.86 1.430 1.6061
1.500 0.049 0.2234 30.61 1.402 1.5438
1.500 0.065 0.2930 23.08 1.370 1.4741
1.500 0.083 0.3695 18.07 1.334 1.3977
1.500 0.095 0.4193 15.79 1.310 1.3478
1.500 0.109 0.4763 13.76 1.282 1.2908
1.500 0.120 0.5202 12.50 1.260 1.2469
1.500 0.134 0.5750 11.19 1.232 1.1921
1.500 0.148 0.6286 10.14 1.204 1.1385
1.250 0.035 0.1336 35.71 1.180 1.0936
1.250 0.049 0.1849 25.51 1.152 1.0423
1.250 0.065 0.2420 19.23 1.120 0.9852
1.250 0.083 0.3043 15.06 1.084 0.9229
1.250 0.095 0.3447 13.16 1.060 0.8825
1.250 0.109 0.3907 11.47 1.032 0.8365
1.250 0.120 0.4260 10.42 1.010 0.8012
1.250 0.134 0.4698 9.33 0.982 0.7574
1.000 0.028 0.0855 35.71 0.944 0.6999
1.000 0.035 0.1061 28.57 0.930 0.6793
1.000 0.049 0.1464 20.41 0.902 0.6390
1.000 0.065 0.1909 15.38 0.870 0.5945
1.000 0.083 0.2391 12.05 0.834 0.5463
1.000 0.095 0.2701 10.53 0.810 0.5153
1.000 0.109 0.3051 9.17 0.782 0.4803
1.000 0.120 0.3318 8.33 0.760 0.4536
1.000 0.134 0.3646 7.46 0.732 0.4208
0.250 0.020 0.0145 12.50 0.210 0.0346
0.875 0.020 0.0537 43.75 0.835 0.5476
0.875 0.028 0.0745 31.25 0.819 0.5268
0.875 0.035 0.0924 25.00 0.805 0.5090
0.875 0.049 0.1272 17.86 0.777 0.4742
0.875 0.065 0.1654 13.46 0.745 0.4359
0.875 0.083 0.2065 10.54 0.709 0.3948
0.875 0.095 0.2328 9.21 0.685 0.3685
0.875 0.109 0.2623 8.03 0.657 0.3390
0.875 0.120 0.2846 7.29 0.635 0.3167
0.750 0.028 0.0635 26.79 0.694 0.3783
0.750 0.035 0.0786 21.43 0.680 0.3632
0.750 0.049 0.1079 15.31 0.652 0.3339
0.750 0.065 0.1399 11.54 0.620 0.3019
0.750 0.083 0.1739 9.04 0.584 0.2679
0.750 0.095 0.1955 7.89 0.560 0.2463
0.750 0.109 0.2195 6.88 0.532 0.2223
0.750 0.120 0.2375 6.25 0.510 0.2043
0.625 0.020 0.0380 31.25 0.585 0.2688
0.625 0.028 0.0525 22.32 0.569 0.2543
0.625 0.035 0.0649 17.86 0.555 0.2419
0.625 0.049 0.0887 12.76 0.527 0.2181
0.625 0.065 0.1144 9.62 0.495 0.1924
0.625 0.083 0.1413 7.53 0.459 0.1655
0.625 0.095 0.1582 6.58 0.435 0.1486
0.625 0.109 0.1767 5.73 0.407 0.1301
0.500 0.020 0.0302 25.00 0.460 0.1662
0.500 0.028 0.0415 17.86 0.444 0.1548
0.500 0.035 0.0511 14.29 0.430 0.1452
0.500 0.049 0.0694 10.20 0.402 0.1269
0.500 0.065 0.0888 7.69 0.370 0.1075
0.500 0.083 0.1087 6.02 0.334 0.0876
0.375 0.020 0.0223 18.75 0.335 0.0881
0.375 0.028 0.0305 13.39 0.319 0.0799
0.375 0.035 0.0374 10.71 0.305 0.0731
0.375 0.049 0.0502 7.65 0.277 0.0603
0.375 0.065 0.0633 5.77 0.245 0.0471
0.250 0.028 0.0195 8.93 0.194 0.0296
0.250 0.035 0.0236 7.14 0.180 0.0254
0.250 0.049 0.0309 5.10 0.152 0.0181
0.250 0.065 0.0378 3.85 0.120 0.0113

Equivalent Grades for Stainless Steel TP 304 / 304L / 316 / 316L Tubing

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 304 1.4301 S30400 SUS 304 304S31 08Х18Н10 Z7CN18-09 X5CrNi18-10
SS 304L 1.4306 / 1.4307 S30403 SUS 304L 3304S11 03Х18Н11 Z3CN18-10 X2CrNi18-9 / X2CrNi19-11
SS 316 1.4401 / 1.4436 S31600 SUS 316 316S31 / 316S33 - Z7CND17-11-02 X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316L 1.4404 / 1.4435 S31603 SUS 316L 316S11 / 316S13 03Ch17N14M3 / 03Ch17N14M2 Z3CND17-11-02 / Z3CND18-14-03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3

Find Chemical Composition of SUS 304H Square Tubes

Stainless Steel 304, 304L, 316, 316L Tubes Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
SS 304 0.08 max 2 max 0.75 max 0.045 max 0.030 max 18 – 20 - 8 – 11 -
SS 304L 0.035 max 2.0 max 1.0 max 0.045 max 0.03 max 18 – 20 - 8 – 13 -
SS 316 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 16.00 - 18.00 2.00 - 3.00 11.00 - 14.00 67.845 min
SS 316L 0.035 max 2.0 max 1.0 max 0.045 max 0.030 max 16.00 - 18.00 2.00 - 3.00 10.00 - 14.00 68.89 min

Mechanical Properties of Stainless Steel TP304 / 304L / 316 / 316L Tubing

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %
8.0 g/cm3 1399 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %
