Admiralty brass tubes

Reliable UNS C44300 fin tubes supplier in India

Admiralty brass tubes

Admiralty Brass Fin Tubes has good corrosion resistance, Refer sizes of Naval brass tube

Admiralty brass tubes specification

Tube sizes

Sizes

OD: 0.5" - 24"
WT:6mm-30mm

Dimensional standard

Dimensional standard

ASME B36.19
ASME B36.10

Surface

Surface

2B
2D
Mill finish

Schedule

UNS C44300 fin tubes Schedule

SCH 5
SCH 10
SCH 20
SCH 40
SCH 80
SCH 120
SCH XXS

Packaging

Naval brass tube Packaging

Loose
Wooden Pallet
Bundle
Plastic Cloth Wraps
Wooden box-a



Length

Length

Single Random
Double Random
Cut length





Delivery Conditions

UNS C68700 tubing Delivery Conditions

Cold Drawn
Quenched and Tempered
Normalizing Formed
Hot Rolled
Normalized and Tempered
Normalizing Rolled

Testing Provided By Supplier

Testing Provided By Supplier

HIC TEST
NACE TM0177
H2 SERVICE
NACE TM0284
NACE MR0175
SSC TEST

Value added services

Value Added Services

Draw
Shot Blasting
Heat Treatment
Sand Blasting
Machining
Galavanizing
Expansion

Cutting techniques

C68700 welded tube Cutting techniques

Burrless Cuts
Tapping
Water-Jet

Form

C44300 Admiralty Brass seamless tube Form

Round
Rectangular
Square

Ends

ASME SB111 UNS C68700 round tube Ends

Beveled
Straight cut
Plain

UNS C68700 tubing are used specifically for vapour condensers, Trusted stockist of C68700 Alloy heat exchanger tubes

Available types of C44300 tubes

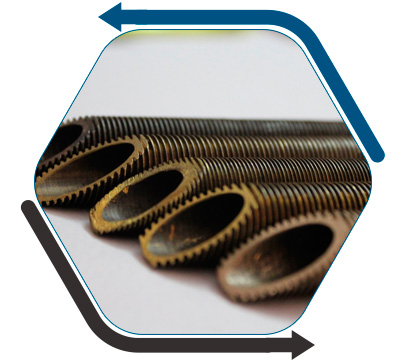

UNS C44300 fin tubes

UNS C44300 fin tubes

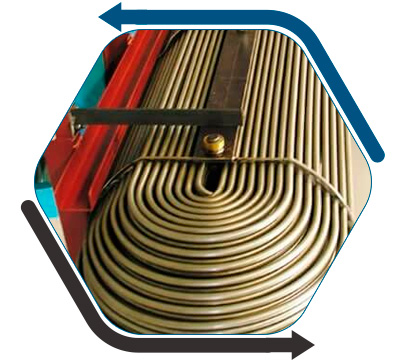

C68700 Alloy heat exchanger tubes

C68700 Alloy heat exchanger tubes

SB111 UNS C68700 welded tube

SB111 UNS C68700 welded tube

C44300 brass condenser tube

C44300 brass condenser tube

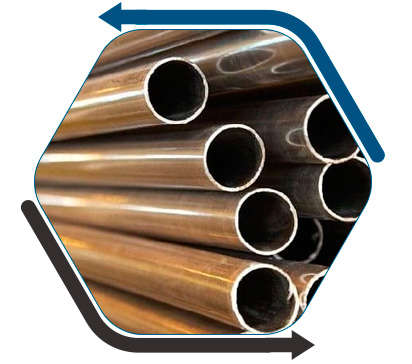

C44300 Admiralty Brass seamless tube

C44300 Admiralty Brass seamless tube

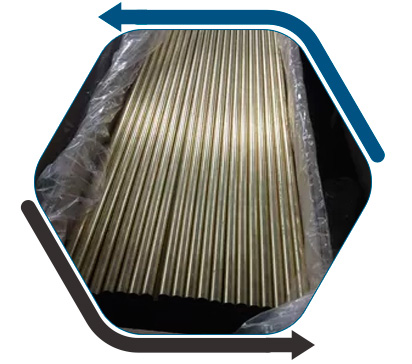

ASME SB111 UNS C68700 round tube

ASME SB111 UNS C68700 round tube

Admiralty Brass Fin Tubes chemical composition

Sn Cu As Pb Fe Zn
Min/Max 0.8 - 1.2 70.0 - 73.0 0.02 - 0.06 0.07 0.06 Rem
Nominals 1.0000 71.0000 0.0400 - - 28.0000

Naval brass tube physical properties

Coefficient Of Thermal Expansion Density Electrical Conductivity Modulas Of Rigidity Melting Point Liquid US Modulas Of Elasticity In Tension Thermal Conductivity Specific Gravity Electrical Resistivity Specific Heat Capacity
11.2 10−6Per °F (68-572 F) 0.308 Lb/In3 @ 68 F 25 %IACS @ 68 F 6000 Ksi 1720 F 16000 Ksi 64.0 BTU In/Hr.Ft2.°F @ 68°F 8.53 41.5 Ohms-Cmil/Ft @ 68 F 0.09 Btu/Lb/°F @ 68 F

UNS C44300 fin tubes equivalent grade

SPECIFICATIONS DESIGNATION
ISO CuZn28Sn1
Europen CuZn28Sn1As
BS CZ 111
JIS C 4430
Russian L62-1
SB111 UNS C68700 welded tube is annealed at 593 °C, Check weight chart of C44300 brass condenser tube

Application of SB111 UNS C68700 welded tube

  • Automobile Industry
  • Industrial Refrigeration
  • Heat Exchanger
  • Radiator
  • General Engineering Purposes
  • Refinery
  • Chemical industry

Size chart of UNS C68700 tubing

Outside Diameter Length Thickness
(3/16") 4.76mm to (4.1/8") 104.78mm Straight Length : 15mtr Max. 0.508mm (0.020") min

ASME SB111 UNS C68700 round tube features

  • High stability
  • Light Weight
  • Good fatigue
  • High Strength
  • Rust and corrosion resistance
  • Good Thermal Conductivity

Testing and Inspection of ASME SB111 UNS C68700 round tube

  • Elongation Test
  • Spectrum Test
  • Eddy-Current Test
  • Automatic Hydrostatic Pressure Test
  • Hardness Test
  • Tensile Strength Test
View thickness and tolerance of C44300 Admiralty Brass seamless tube, Top notch distributor of ASME SB111 UNS C68700 round tube

Dimensions of C44300 Admiralty Brass seamless tube

B.W.G Thickness 0.500 0.625 0.750 0.875 1.000 1.250 1.500 1.750 2.000
10 0.134 0.232 0.357 0.482 0.607 0.732 0.982 1.232 1.482 1.732
11 0.120 0.260 0.385 0.510 0.635 0.760 1.010 1.260 1.510 1.760
12 0.109 0.282 0.407 0.532 0.657 0.782 1.032 1.282 1.532 1.782
13 0.095 0.310 0.435 0.560 0.685 0.810 1.060 1.310 1.560 1.810
14 0.083 0.334 0.459 0.584 0.709 0.834 1.084 1.334 1.584 1.834
15 0.072 0.356 0.481 0.606 0.731 0.856 1.106 1.356 1.606 1.856
16 0.065 0.370 0.495 0.620 0.745 0.870 1.120 1.370 1.634 1.870
17 0.058 0.384 0.509 0.634 0.759 0.884 1.134 1.384 1.652 1.884
18 0.049 0.402 0.527 0.652 0.777 0.902 1.152 1.402 1.666 1.902
19 0.042 0.416 0.541 0.666 0.791 0.916 1.166 1.416 1.680 1.916
20 0.035 0.430 0.555 0.680 0.805 0.930 1.180 1.430 1.686 1.930
21 0.032 0.436 0.561 0.686 0.811 0.936 1.186 1.436 1.620 1.936
22 0.028 0.444 0.569 0.694 0.825 0.944 1.194 1.444 1.694 1.944
23 0.025 0.450 0.575 0.700 0.819 0.950 1.200 1.450 1.700 1.950
24 0.022 0.456 0.581 0.706 0.831 0.956 1.206 1.456 1.706 1.956
